本系列产品是专为吊运中厚钢板而设计的。吊运作业安全准确迅速。考虑到长钢板吊运可能出现弯曲变形而影响安全搬运，所以在吊运长尺寸钢板时，请使用多台电磁铁联用。对于中厚板（6mm-32mm）电磁铁的间距多取3-4米，两端外伸部分的长度可取间距的二分之一。根据吊运张数的不同，又分为350型与400型两类。350型适合于中厚板厂、造船厂、机械制造厂，采用调磁控制方式，能起吊一张或一定张数钢板。400型适用于一次搬运尽量多的张数，可根据用户要求另行设计制造吊运700℃以下钢板用高温型产品。

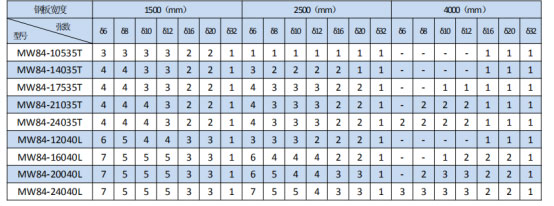

The series of products are specially designed for lifting and transporting steel plates of medium-thickness.The lifting operation is safe,accurate and quick.Considering possible bending and deforming may affect safe transportation when lifting long steel plates,please use the combination of several electromagnets.As to medium -thickness steel plates(6mm-32mm),the space length of electromagnets is 3-4m,the space length of extension parts of both ends is half of the space length.According to different lifting pieces,the series can be divided into type 350 and type 400.Type 350 is suitable for medium -thickness plate factor,ship building factor,and machinery manufacturing factorn,it adopts magnet regulating control method,and can lift one piece or certain pieces of steel plate.Type 400 is suitable for transporting as many as possible pieces at a time and can design and manufacture high temperature type products used for lifing and transporting steel plate below 700℃ according to customers.

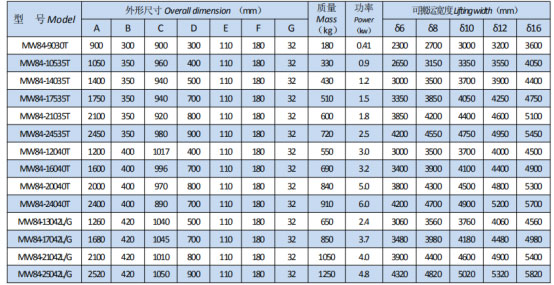

主要技术参数Main technical data DC-220V,TD-50%
